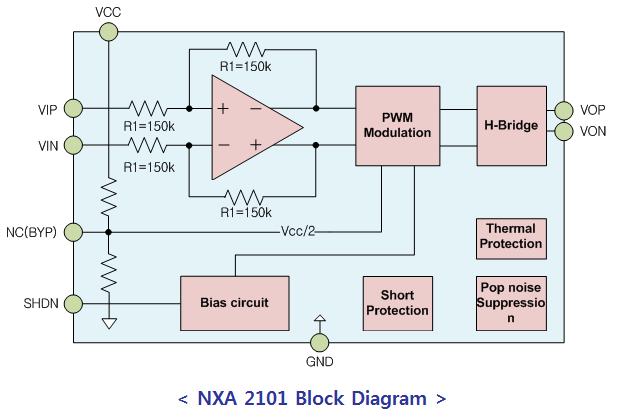

1. NXA 2101 Feature. Supply Voltage : 2.5V ~ 5.5V . Mono BTL amplifier mode . 1.4W into 8Ω From a 5V Supply at 5V THD = 10%(Typ) . Low Supply Current : 2.0mA typ at 3.6V . Shutdown Current : 1.0uA (Max) . Fixed Gain : 12.0dB / Under 12.0dB gain with external resister . Short-circuit and Thermal Protection . Self enable when remove protection condition . Extremely low pop noise with sub-feedback technic . Package : DFN-8 3mm*3mm |
Data Sheet  |
|
 |
|
 |

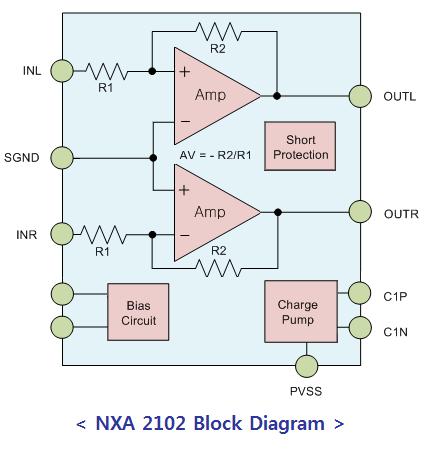

2. NXA 2102 Feature
|
| Data Sheet |
|
 |
|
 |

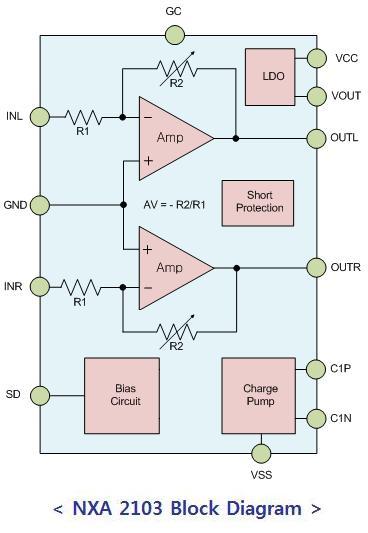

3. NXA 2103 Feature. Space Saving Package . Ground-Referenced Outputs Eliminate DC-Bias Voltages on Headphone Ground Pin . No Output DC-Blocking Capacitors . Reduced Board Area . Reduced Component Cost Improved THD+N Performance . No Degradation of Low-Frequency Response Due to Output Capacitors . Built in charge pump & LDO . Power Supply Range : 2.5V ~ 5.5V . 60mW/Ch Output Power into 16Ω at 5.5V . Selectable Gain . Short-Circuit and Thermal Protection . Click and Pop suppression circuit . QFN-20 4mm*4mm |
| Data Sheet |
|
 |
|
